When a fire breaks out in a high-rise structure, seconds dictate the outcome. Emergency responders need immediate, reliable access to pressurized water without dragging heavy hoses up dozens of stairwells. This crucial connection happens through a dedicated valve system designed specifically for building interiors. Failing to specify the correct valve severely compromises fire suppression efficiency. It also leads to frustrating compliance failures during building inspections and creates significant long-term maintenance liabilities. Facility managers and mechanical engineers face immense pressure to select the right components the first time. The correct choice guarantees occupant safety and protects the property from catastrophic damage.
This guide breaks down the operational role of these valves inside modern infrastructure. We will explore how to evaluate different architectural layouts effectively. You will also learn proven strategies for risk-free procurement. By understanding these technical nuances, you ensure your emergency riser system performs flawlessly when it matters most.
A landing valve acts as the critical bridge between a building’s internal water supply (riser network) and emergency response hoses.
Correct specification relies heavily on understanding the precise pressure requirements and spatial constraints of the installation site.
Material selection (typically gunmetal or brass) directly impacts the valve's lifespan and resistance to corrosion in stagnant water systems.
Compliance with localized codes (e.g., BS 5041, NFPA 14) is non-negotiable for passing municipal safety inspections and securing insurance.
Firefighters rely on a fire landing valve to tap into a building's internal water grid. Wet risers keep internal pipes constantly pressurized with water. Dry risers remain empty until emergency crews arrive and pump water into them from a street-level appliance. In either scenario, the valve gives responders an immediate, secure coupling point for their heavy delivery hoses. It transforms a static pipe into a dynamic firefighting tool. Without this bridge, crews would waste precious minutes running hoses from the street up into complex vertical structures.
You will almost always find these devices installed inside staircases, fire escape corridors, or secure vestibules. Industry professionals call these designated staging areas "landings." This strategic placement allows firefighters to connect their equipment safely while panicked occupants evacuate the structure. It prevents rigid hoses from obstructing critical escape routes. Furthermore, placing them in fire-rated stairwells protects the equipment from initial heat and smoke damage. It provides a secure bridgehead for responders to launch their internal attack.
Once connected, a specialized handwheel mechanism takes over. Operators turn this wheel to regulate the outgoing water flow manually. They can precisely adjust the output pressure to suit the specific intensity of the blaze. This hands-on control stops sudden pressure surges from ripping hoses from firefighters' grips. It prevents dangerous water hammer effects that could rupture internal pipework. The manual wheel ensures the brigade maintains absolute control over the water delivery rate throughout the entire operation.
People often confuse these two critical components. However, they serve vastly different operating environments. We place landing valves strictly indoors. You will find them distributed across vertical staircase networks inside commercial or residential towers. Conversely, you will find hydrant valves outdoors. They sit at street level or on private exterior grounds to tap directly into municipal water mains. The environmental exposure dictates entirely different casting thicknesses and weatherproofing requirements.
A standard street hydrant handles predictable, moderate municipal pressure. It rarely experiences massive fluctuation. On the other hand, vertical water columns in skyscrapers generate massive static pressure at lower levels due to gravity. Water pressure increases by roughly one bar for every ten meters it drops. Consequently, a lower-floor Landing Valve often needs specialized internal mechanisms. It must reduce and stabilize this extreme static force before releasing water into a canvas hose. Street hydrants simply do not face these vertical pressure extremes.
Both devices assist the fire brigade in suppressing flames. Yet, engineers specifically design indoor valves for the unique vertical challenges of high-rise building infrastructure. They feature compact footprints to avoid blocking pedestrian traffic. They utilize specific coupling types matched to indoor attack hoses. Below is a comparative chart clarifying these distinctions for system specifiers.
Feature | Landing Valve | Hydrant Valve |
|---|---|---|
Primary Location | Indoors (Stairwells, fire corridors) | Outdoors (Streets, exterior perimeters) |
Pressure Handling | Must handle extreme high-rise static pressure; often requires PRV capabilities. | Handles standard municipal underground main pressure. |
Footprint | Compact, designed to fit inside shallow fire cabinets. | Large, robust exterior pillar or underground pit design. |
Primary User Goal | Providing a localized water bridgehead on a specific floor. | Feeding water to the primary fire engine appliance. |

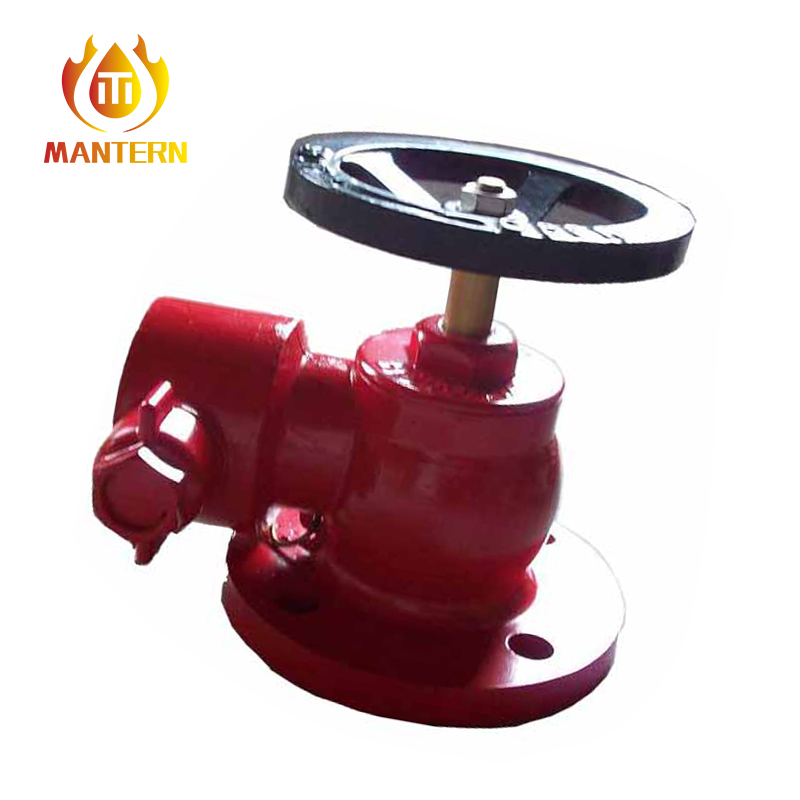

Most standard installations favor the oblique or right-angle geometry. The design angles the outlet downward and slightly outward from the main riser pipe. This angle prevents the heavy, pressurized canvas hose from kinking under its own weight. A kinked hose restricts flow and endangers the crew. This geometry offers incredible versatility. It remains highly popular across mid-rise developments. However, it requires ample physical clearance on the landing. You cannot push an oblique valve flush into a tight corner without compromising spanner access.
Architects sometimes design very narrow corridors to maximize sellable floor space. Straight and bib nose variants solve these strict spatial restrictions. They work best when system piping runs horizontally. They also excel when the installation demands a strict downward hose connection. They are incredibly space-efficient. You can tuck them neatly into shallow wall cabinets. However, the internal casting shape slightly alters water flow dynamics. Engineers must account for these internal friction losses during their initial hydraulic calculations.
High-rise infrastructure legally mandates pressure reducing units. As discussed, gravity causes water pressure to multiply drastically on the lower floors of a tall building. Static pressure here can easily exceed safe operational limits. A PRV safely steps down this dangerous force using an internal spring mechanism. It protects canvas hoses from violent ruptures. It also prevents firefighters from suffering serious physical injuries due to uncontrollable hose whip. On the downside, PRVs demand rigorous initial calibration. You must schedule frequent maintenance to ensure the internal springs do not seize from hard water deposits.
Water sits stagnant inside wet risers for years before an emergency occurs. This stagnant environment breeds aggressive internal corrosion. Specifiers must demand high-grade gunmetal, specifically grades like LG2 conforming to BS1400. Dezincification-resistant brass also performs exceptionally well in these harsh conditions. These premium materials prevent the internal threads from seizing. They stop the main spindle from snapping when an operator turns the wheel forcefully. Cheaper alloys will inevitably corrode, rendering the unit entirely useless during a fire.
Minimum operational benchmarks dictate performance and safety. The overall system typically demands a reliable 15 bar working pressure. Meanwhile, the manufacturing facility must execute a 22.5 bar test pressure before shipping the unit. These tolerances ensure the main casting will not crack when the fire engine pump suddenly surges. Specifiers must verify these exact numbers on the manufacturer's technical data sheets. Accepting lower tolerances introduces massive legal liability.

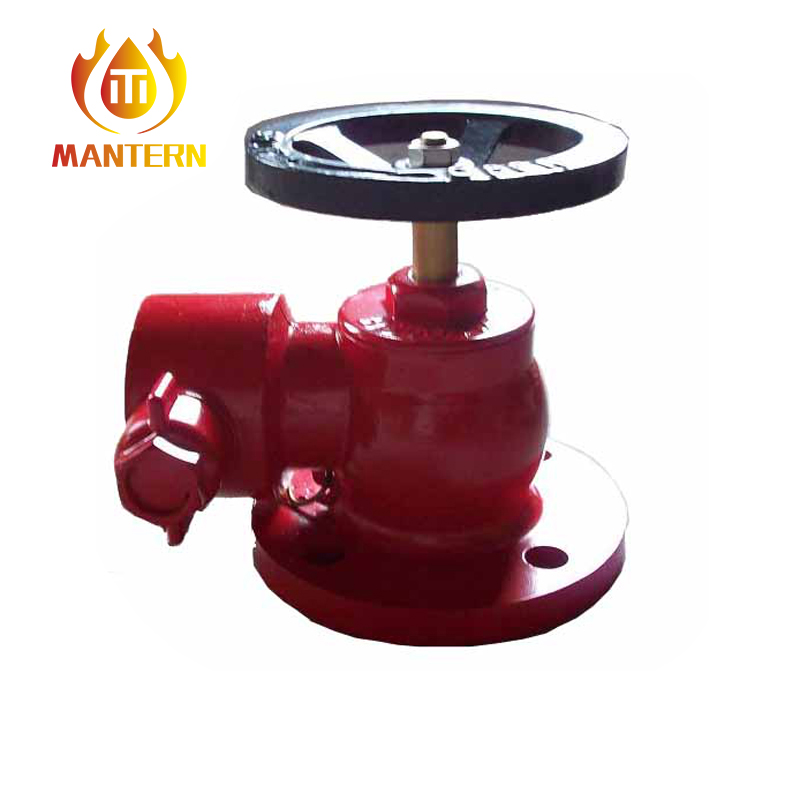

Installation teams face a clear choice between flanged and screwed inlets. Flanged connections bolt directly to the riser pipe via a steel plate. They handle high building vibrations exceptionally well. Screwed inlets thread directly onto the pipe for a much faster assembly process. The chosen outlet must match local emergency equipment perfectly. Usually, this means specifying an instantaneous female delivery connection conforming to strict BS 336 dimensions. A mismatched outlet means the brigade cannot attach their hoses, resulting in a total system failure.
Audit-proof procurement relies entirely on verified third-party certifications. You must seek out marks like Kitemark, UL, FM, or strict local equivalents depending on your region. These bodies subject the units to brutal cycle testing and metallurgical analysis. Uncertified equipment guarantees failed municipal inspections. Furthermore, installing unlisted components will likely void the building's property insurance policy. You must treat compliance documentation as equally important as the physical hardware.
Real-world installation often introduces unexpected failure points. Contractors frequently mount valves too close to adjacent walls. Sometimes they install them behind doors, blocking the outward swing. This common spatial mistake prevents the fire brigade spanner from turning the wheel fully. It can also stop the large hose coupling from locking smoothly into the outlet. Engineers must supervise the physical installation to ensure the theoretical clearance on the blueprint matches reality.
Active construction zones generate massive amounts of debris. Metal shavings, welding slag, and concrete dust easily enter open pipes during assembly. If workers fail to flush the riser system thoroughly at high velocity, this debris remains trapped. When the valve finally opens, the debris rushes through and scars the delicate internal rubber seat. A damaged seat causes permanent internal leaks. It prevents the system from holding pressure during hydrostatic testing.
Facilities management teams often treat these devices as "fit and forget" assets. This mindset proves dangerous over time. Rubber washers perish naturally. Moving brass parts seize due to oxidation. Routine testing remains absolutely necessary to keep the system viable. Visual inspections do not suffice. Teams must physically flow water and check the pressure gauges.
Placing the operating handwheel within 50mm of a structural wall, preventing full rotation.
Skipping the initial high-pressure pipe flush prior to system commissioning.
Failing to replace aging internal rubber gaskets every five years.
Painting over the brass handwheel threads during staircase renovations.
Leaving the blanking cap loose, allowing debris and pests into the outlet.
You must audit a manufacturer's testing facilities closely before signing a purchase order. Request their original hydrostatic test certificates. Demand complete material traceability reports for the primary castings. Reliable vendors will provide these documents instantly. If a supplier hesitates or provides blurry, unverified paperwork, walk away immediately. The risk of installing counterfeit or substandard fire protection gear is simply too high.
Ensure your chosen unit aligns perfectly with your existing building infrastructure. The valve's flow capacity must seamlessly match your basement pump flow rates. It must also fit the established riser pipe sizing without requiring complex, flow-restricting adapters. A mismatch in sizing creates turbulent water flow. Turbulence severely drops the terminal pressure reaching the firefighter's nozzle.
Verify the manufacturer holds current ISO 9001 quality management status.
Cross-check third-party flow test results directly with the testing laboratory.
Confirm strict compatibility with the local municipal fire department's hose couplings.
Review the material composition certificates to guarantee LG2 gunmetal or approved brass.
Inspect the quality of the protective blanking cap and its securing chain.
A correctly specified fire connection point is an indispensable, heavily regulated life-safety component. It literally bridges the gap between static building infrastructure and active emergency response. Evaluating vendors strictly on verifiable material quality, correct geometric architecture, and undeniable compliance data represents the only viable path for MEP engineers and facility managers. Cutting corners on these devices invites catastrophic failure during a crisis.
We strongly encourage you to arrange a direct consultation with a specialized fire protection professional. They will review your project-specific hydraulic calculations and confirm your pressure reduction requirements. Taking this crucial final step guarantees your vertical riser system performs exactly as intended, protecting both property and human life.
A: Installation height focuses entirely on ergonomic access for firefighters carrying heavy gear. You should typically install them between 750mm and 1000mm above the finished floor level. Always verify exact measurements against your local municipal fire codes, as regional standards occasionally dictate tighter tolerances.
A: Yes. You cannot treat them as fit-and-forget devices. You must conduct annual visual inspections to check for external damage or missing blanking caps. Furthermore, periodic flow and hydrostatic pressure testing remains vital. This prevents internal threads from seizing and ensures rubber seals have not perished over time.
A: High-rise applications typically mandate pressure-reducing valves (PRVs) on lower floors. When static water pressure exceeds localized legal thresholds (often around 7 to 8 bar), standard valves become dangerous. A PRV safely reduces this extreme force, preventing burst hoses and protecting firefighters from injury.
A: A flanged inlet uses a flat plate bolted directly to the riser pipe, offering excellent resistance to high vibrations. A screwed inlet features internal threads that twist directly onto the pipe. Screwed inlets allow for faster installation, while flanged connections provide superior, long-term leak resistance in heavy-duty applications.
