MTCP02
Mantern

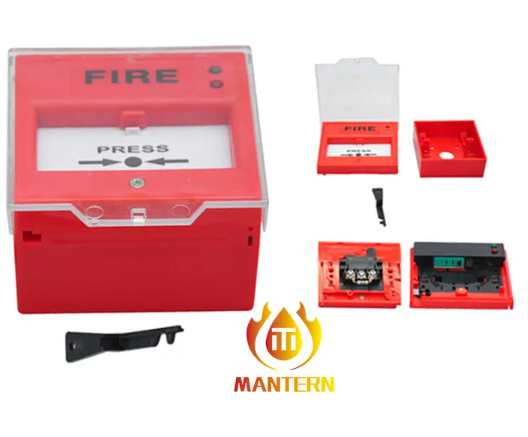

The MTCP02 is a glass break fire manual call point manufactured by Mantern for commercial and industrial fire alarm systems. This device functions as a manual activation point, enabling building occupants to initiate an alarm signal upon detecting a fire. The MTCP02 integrates a mechanical switch mechanism with a glass activation element, providing a straightforward method for triggering building-wide fire alerts.
The call point features a durable housing with prominent "FIRE PRESS HERE" markings that remain visible under various lighting conditions. Standard color options include red, yellow, and green, allowing facilities to align devices with specific safety color codes or building design requirements. The clear labeling ensures that occupants can quickly locate and operate the device during emergency situations.
The MTCP02 operates through a glass break activation system. The front panel contains a glass push button designed to fracture when subjected to sufficient pressure. When pressed firmly, the glass breaks, closing an internal electrical contact. This contact closure sends a signal to the connected fire alarm control panel, which then activates the building's audible and visual warning devices.
Once activated, the MTCP02 remains in the alarm state until serviced. Unlike resettable call points that use reusable mechanisms, this glass break design requires replacement of the broken glass element to return the device to standby condition. This feature provides a permanent visual indication of activation until proper maintenance is performed, which aligns with many commercial fire safety regulations.
Parameter | Value |
Model No. | MTCP02 |
Operation Voltage | 24V DC |
Max. Current | 1A at 24V DC |
Contact Resistance | ≤0.2ohm |
Working Temperature Range | -10℃-+50℃ |
Working Relative Humidity | ≤93%RH±2% |
Available Colors | Red, Yellow, Green etc. |
Activation Mechanism | Glass break |
Reset Method | Glass element replacement |
The MTCP02 fire manual call point is suitable for installation in various commercial and industrial facilities. Recommended locations include exit corridors, stairwell entrances, elevator lobbies, and near high-risk areas such as kitchens or electrical rooms. These devices should be placed at heights between 1.2 meters and 1.5 meters above floor level for easy access by all occupants.
The device operates reliably within its specified temperature and humidity ranges, making it appropriate for indoor installations in most climate zones. It is not designed for exposed outdoor use where conditions may exceed the stated operating parameters. For commercial procurement projects involving large facilities, the MTCP02 offers consistent performance across multiple building zones.
Glass break call points like the MTCP02 require replacement of the glass element after activation, while resettable call points use a reusable mechanism that can be reset with a special tool. Glass break models provide an unambiguous visual indication of activation until serviced, which is required by some fire safety codes.
MTCP02 call points should be inspected visually monthly to ensure they are unobstructed and undamaged. Functional testing should be performed using a manufacturer-approved test key or tool that simulates glass breakage without actually breaking the element. Full functional testing should be conducted according to local fire safety regulations.
The only replacement part required after activation is the glass push button element. These replacement glasses are available separately and can be installed by trained maintenance personnel. No other components require replacement during normal operation and routine maintenance.
The MTCP02 operates at 24V DC with a maximum current of 1A and provides a dry contact output. This configuration makes it compatible with most conventional fire alarm systems used in commercial and industrial buildings. It can be connected directly to standard input zones on fire alarm control panels.
