MTCG07TH
Mantern

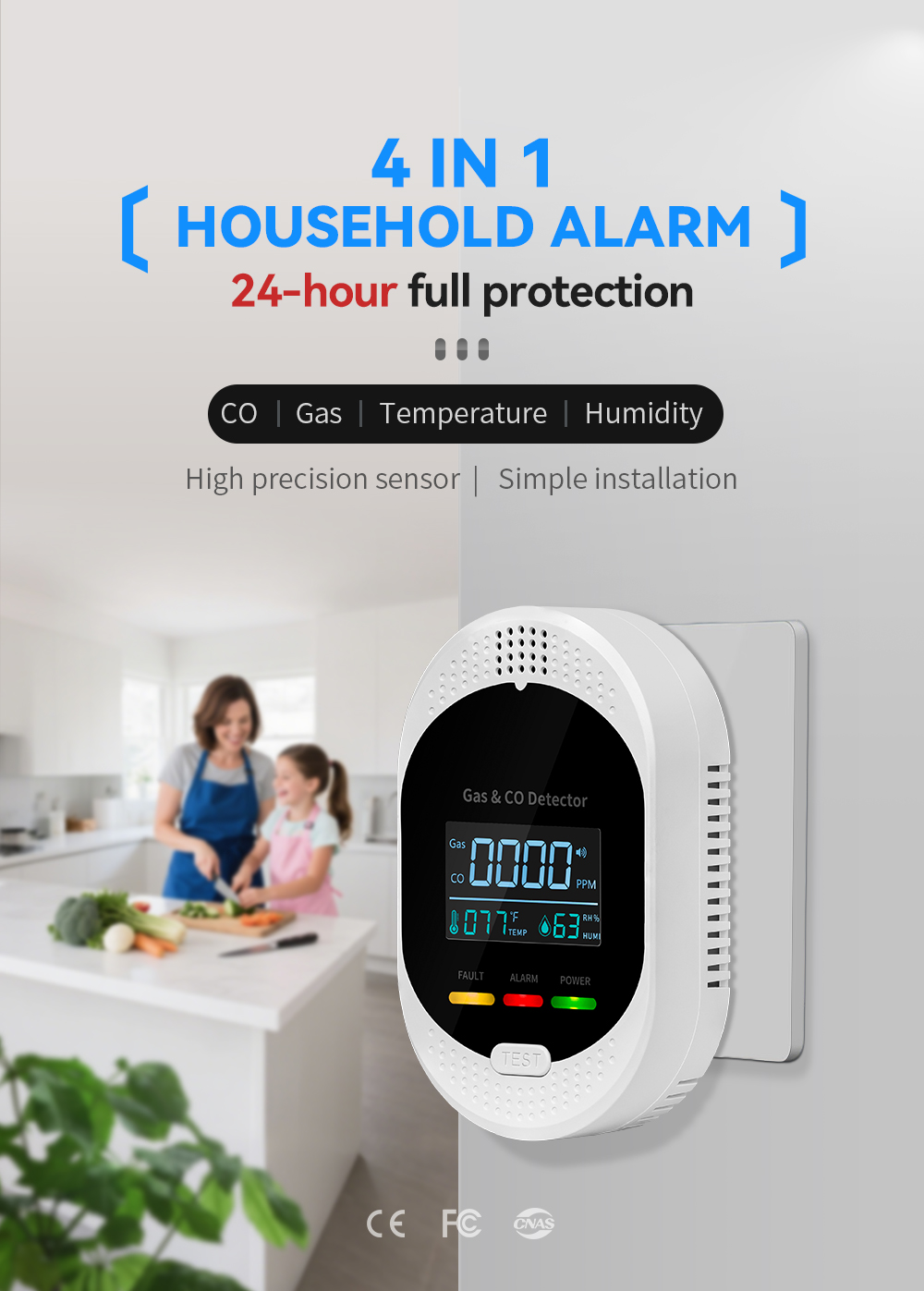

The Mantern MTCG07TH is a plug-in multi-parameter environmental detector that integrates four detection functions in one compact unit. This device monitors combustible gases (CH4/LPG), carbon monoxide (CO), temperature and humidity simultaneously, providing 24-hour continuous detection for various commercial operations. With its plug-and-play design and AC90-240V global voltage compatibility, this detector requires no complex installation or initial configuration. It complies with UL 1484 and UL 2034 standards, making it suitable for commercial procurement across multiple industries and regions.

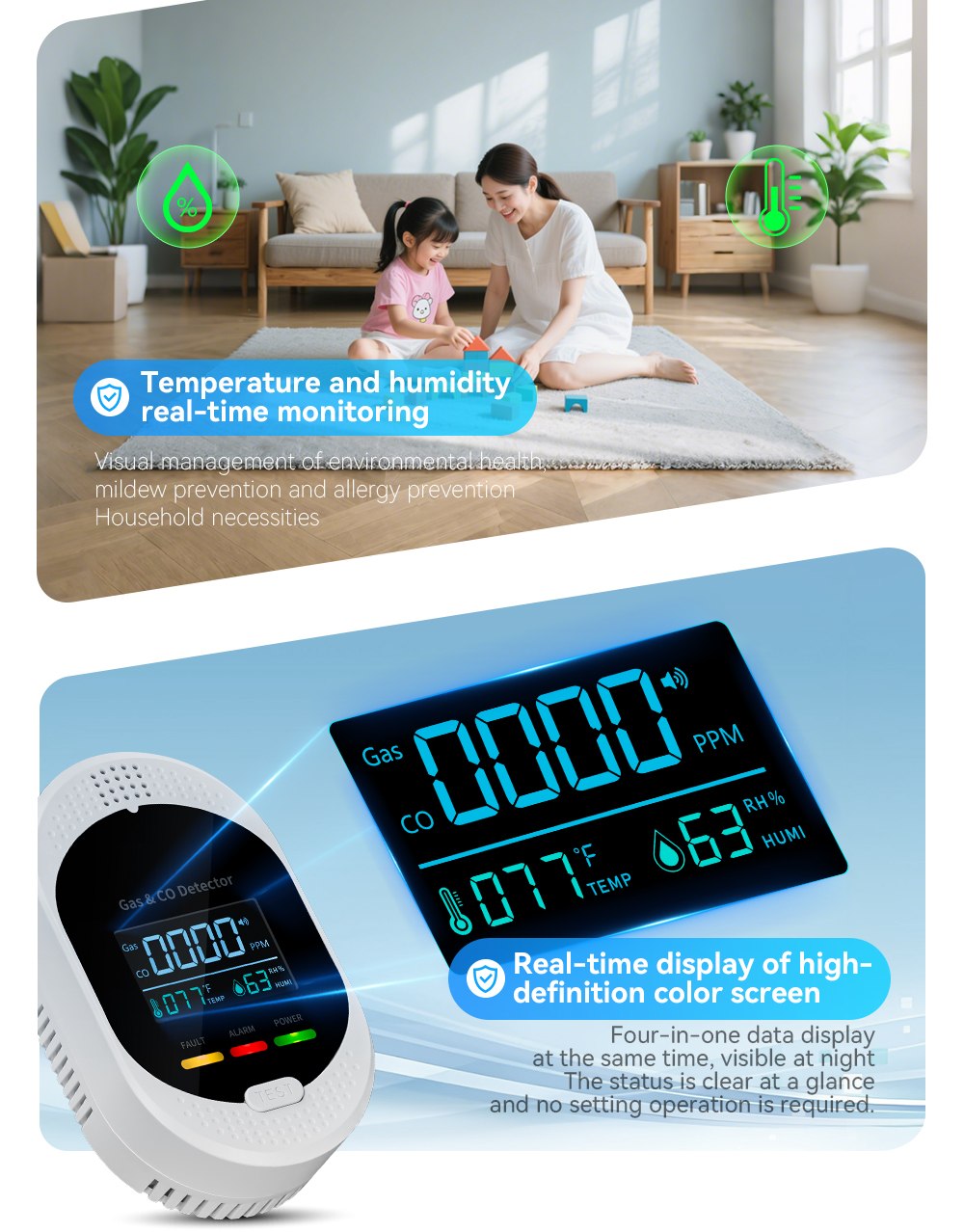

This detector combines four essential environmental monitoring functions into a single device, reducing the number of separate units required and lowering overall procurement and maintenance costs. Real-time temperature and humidity monitoring supports visual management of indoor environmental health, helping to prevent mildew growth and reduce allergy risks in occupied spaces. The device operates continuously without interruption, ensuring constant protection against potential environmental hazards.

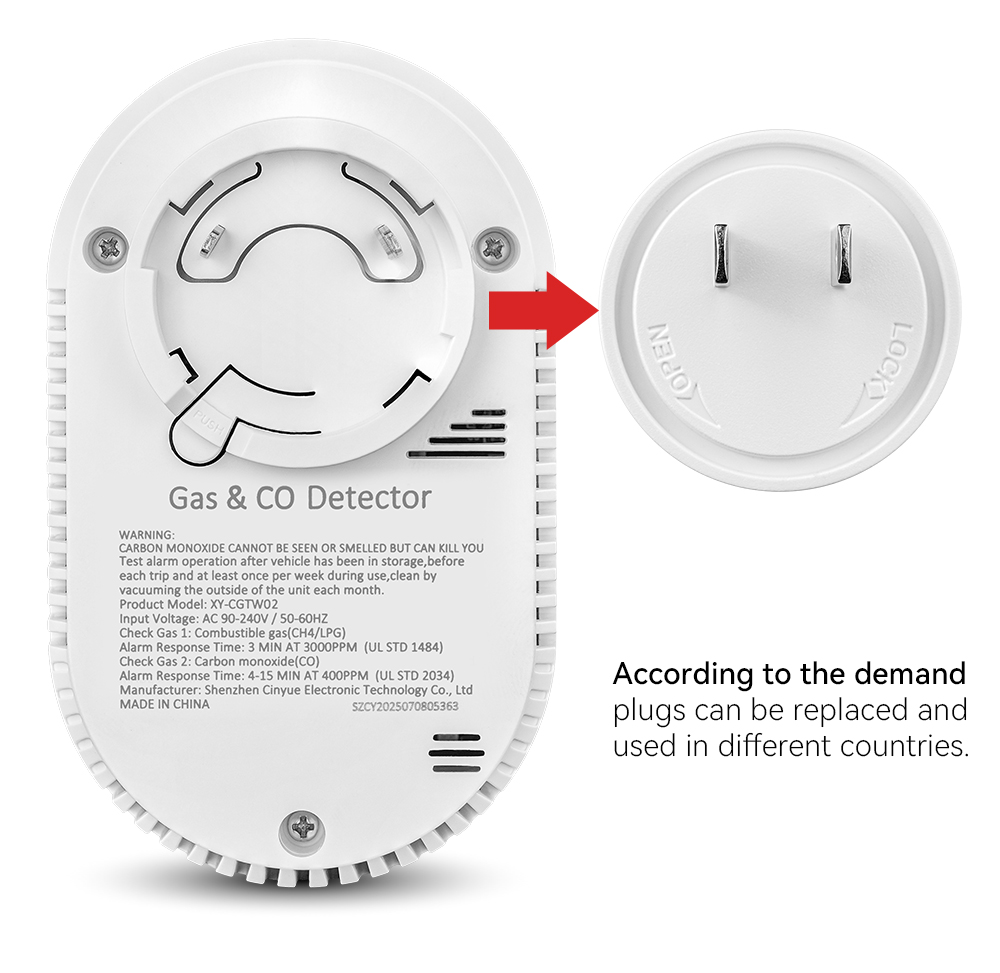

The detector operates on AC 90-240V / 50-60HZ, supporting use in nearly all countries worldwide. According to specific requirements, the plug can be replaced to match different national electrical standards. This feature simplifies international commercial procurement and allows for consistent deployment across multiple geographic locations. No professional installation is required; simply plug the device into a standard electrical outlet to begin immediate operation.

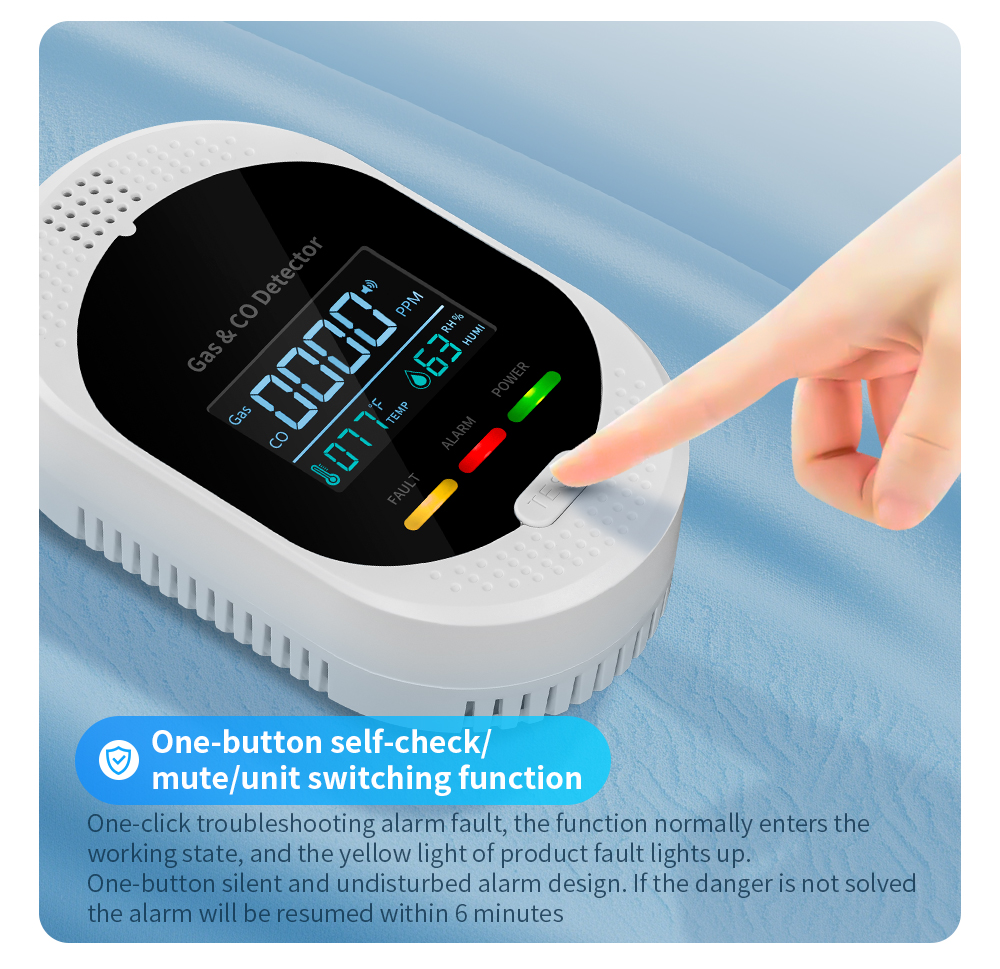

The alarm system meets UL 1484 standards for combustible gas detection and UL 2034 standards for carbon monoxide detection. It features a single button that controls self-check, alarm muting and unit switching functions. The self-test function quickly troubleshoots alarm faults; a yellow FAULT indicator light illuminates if a product fault is detected. The one-button mute design allows for temporary alarm silencing, and the alarm automatically resumes within 6 minutes if the hazard persists. The high-pitched alarm ensures audibility in typical commercial environments.

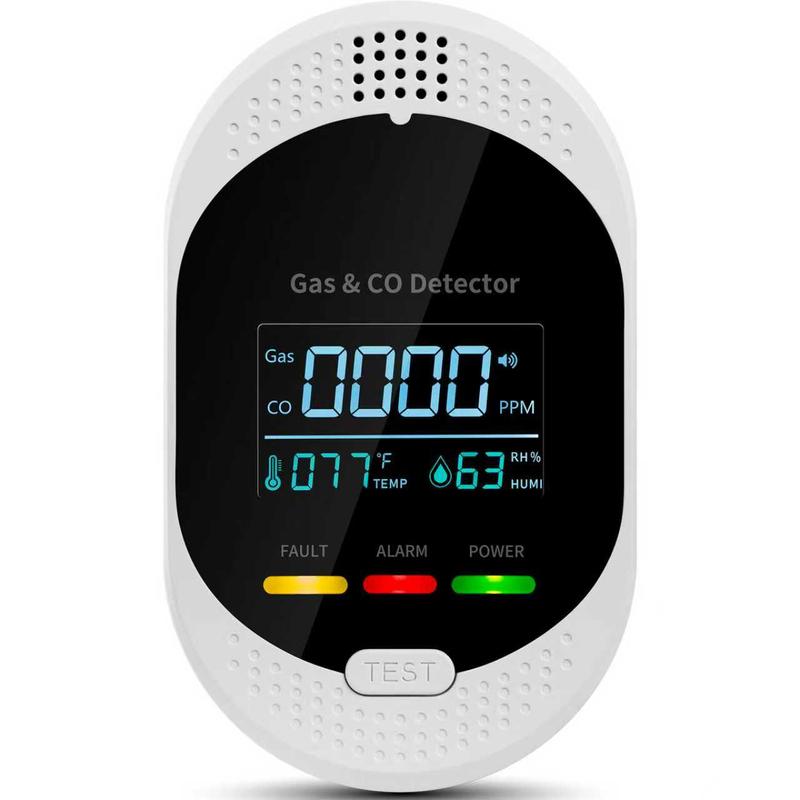

The detector is equipped with a high-definition color screen that displays all four measurement values simultaneously. The display is visible at night, allowing for easy reading in low-light conditions without additional lighting. Three status indicators (POWER, ALARM, FAULT) provide clear visual feedback on device operation at all times. No initial setting operation is required; the detector begins monitoring immediately upon power-up.
Parameter | Details |
Brand | Mantern |
Brand Model | MTCG07TH |
Manufacturer Model | XY-CGTW02 |
Input Voltage | AC 90-240V / 50-60HZ |
Detection Gas 1 | Combustible gas (CH4/LPG) |
Alarm Response Time (Combustible Gas) | 3 MIN AT 3000PPM (UL STD 1484) |
Detection Gas 2 | Carbon monoxide (CO) |
Alarm Response Time (CO) | 4-15 MIN AT 400PPM (UL STD 2034) |
Additional Monitoring | Temperature, Humidity |
Manufacturer | Shenzhen Cinyue Electronic Technology Co., Ltd. |
Origin | Made in China |
  |    |
This detector is suitable for a wide range of commercial applications. In restaurants and commercial kitchens, it monitors for natural gas and propane leaks. In parking garages and vehicle storage facilities, it detects carbon monoxide accumulation from vehicle exhaust. For office buildings, hotels and residential complexes, it helps maintain safe indoor air quality and prevent moisture-related damage. In warehouses and storage facilities, it provides protection against combustible gas leaks and monitors humidity levels to preserve stored goods.
This detector complies with UL 1484 standards for combustible gas detection and UL 2034 standards for carbon monoxide detection.
Yes, the plug can be replaced according to specific requirements to match the electrical standards of different countries.
The alarm operation should be tested at least once per week during regular use. For vehicle storage applications, test before each trip and after the vehicle has been in storage. Clean the outside of the unit monthly using a vacuum cleaner.
When the alarm is muted using the one-button function, it will automatically resume within 6 minutes if the hazard has not been resolved.
The Mantern MTCG07TH 4-in-1 plug-in detector offers comprehensive environmental monitoring with convenient deployment and operation. Its compliance with international safety standards and global compatibility make it a practical choice for commercial procurement across various industries. Contact us for more information about bulk ordering and customization options.
