MT006
Mantern

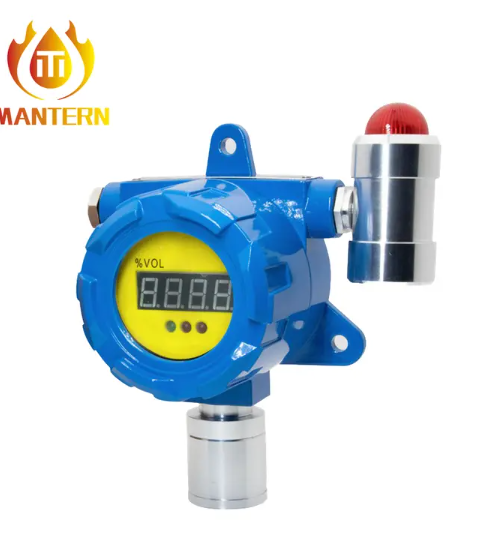

The Mantern MT006 LED display fixed gas transmitter is developed based on years of experience in gas detection research and production. This device is designed for continuous monitoring of various gas concentrations in working environments. It uses imported electrochemical sensors for toxic and oxygen gases, and catalytic combustion sensors for combustible gases. The transmitter features an explosion-proof design and supports 4mA-20mA standard signal output, which can be directly connected to DCS systems. It is widely used in metallurgy, petroleum, chemical, coking, municipal, gas, sewage treatment and other special industries for commercial procurement and industrial applications.
The MT006 utilizes two types of sensors to ensure accurate gas detection. For combustible gases, it employs catalytic combustion sensors, while imported electrochemical sensors are used for toxic gases and oxygen. This transmitter can detect a wide range of gases including LEL, CO, H2S, H2, SO2, NH3, NO, NO2, CL2, O3, O2, CO2, PH3, HCL, HCHO, and C6H6. It provides continuous measurement of gas concentrations in the air with a response time of ≤30 seconds for LEL and ≤60 seconds for toxic gases.
The transmitter features a triangle hole installation design for enhanced stability. It has a side waterproof and dustproof structure with an IP55 protection rating, allowing it to operate in humidity conditions up to 93% RH. The device has obtained CNEx explosion-proof certification with a rating of Ex dIICT6, making it suitable for use in hazardous environments. It can operate in temperatures ranging from -40 to 70 Celsius degrees for LEL detection and -20 to 50 degrees for toxic gas detection.
Equipped with a 4-digit LED display, the MT006 clearly shows real-time gas concentration readings. Three LED indicators are provided to display different conditions: fault alarm, low-level alarm, and high-level alarm. The device is operated via infrared remote control, allowing for convenient parameter adjustment without opening the enclosure, which reduces maintenance time in industrial settings.
The MT006 supports 4-20mA standard analog signal output and 1 relay output. It can be directly integrated into existing DCS systems, enabling seamless data transmission and centralized monitoring. With a transmission distance of up to 1000 meters using a 1.5mm²×3 cable, it is suitable for large-scale industrial facilities with extensive monitoring areas.
Parameter | Specification |
Sensor type | Catalytic or electrochemical gas sensor |
Gas sampling | Natural diffusion |
Power supply | DC24V±25% |
Power consumption | ≤3W |
Working method | Continuous monitoring |
Error rate | ≤±5%F.S. |
Indication method | 4-digit LED light |
Condition display | 3 LED lights indicate fault alarm, L-alarm level alarm and H-alarm level |
Operation | Infrared remote control |
Response time | ≤30s (LEL) / ≤60s (toxic gas) |
Working temperature | -40\70 Celsius degree (LEL) / -20\50 Degree (toxic) |
Working humidity | <93%RH |
Explosion-proof | Ex dIICT6 |
Protection | IP55 |
Pressure Limit | 86-106kPa |
Signal output | 4~20mA |
Relay output | 1 channel |
Install screw thread | G3/4" |
Cable dimension | ≥1.5mm²×3 |
Transmit distance | ≤1000M |
Gas | Range | Resolution | L-alarm | H-alarm |
LEL | 0-100%LEL | 1%LEL | 20%LEL | 50%LEL |
LEL Vapor | 0-100%LEL | 1%LEL | 20%LEL | 50%LEL |
CO | 0-1000PPM | 1PPM | 35PPM | 200PPM |
H2S | 0-100PPM | 1PPM | 10PPM | 15PPM |
NH3 | 0-100PPM | 1PPM | 25PPM | 50PPM |
CL2 | 0-20PPM | 0.1PPM | 5PPM | 10PPM |
O2 | 0-30%VOL | 0.1%VOL | 19.5%VOL | 23.5%VOL |
SO2 | 0-500PPM | 1PPM | 10PPM | 50PPM |
CO2 | 0-6000PPM | 1PPM | 1500PPM | 2000PPM |
In metallurgical plants, the MT006 monitors combustible and toxic gases in blast furnaces and coking workshops. In petroleum and chemical facilities, it detects gas leaks in storage tank areas and pipeline connections. It is also used in coking plants to ensure worker safety during coal processing operations.
For gas distribution systems, the transmitter monitors gas leaks in pressure regulating stations and valve wells. In sewage treatment plants, it detects toxic gases in aeration tanks and sludge treatment areas. It is also suitable for use in municipal facilities where gas safety is a critical concern.
The MT006 uses catalytic combustion sensors for combustible gases and imported electrochemical sensors for toxic gases and oxygen.
The MT006 has an explosion-proof rating of Ex dIICT6 and has obtained CNEx official certification from China.
The transmitter provides 4-20mA standard analog signal output and 1 channel relay output. It can be directly connected to DCS systems.
The maximum transmission distance is 1000 meters when using a 1.5mm²×3 cable.
The Mantern MT006 LED display gas transmitter provides accurate gas detection solutions for various industrial applications. For more information about this product or to request a quote, please contact our sales team.
