Multi-story structures and industrial complexes face a distinct engineering challenge during emergencies. They require a highly reliable manual release point to draw water from pressurized wet or dry risers. A Landing Valve serves as this essential solution. It acts as the critical bridge connecting a building’s internal water supply directly to active firefighting teams. Without this component, first responders cannot access the required water volume to suppress localized fires effectively. This article provides a comprehensive technical and procurement guide. You will learn the mechanical principles governing these devices. We explore how to select the optimal configuration for your specific architecture. We also outline the strict compliance standards required for safe operation. Understanding these mechanics ensures you build resilient, code-compliant fire protection networks. You can confidently evaluate options and maintain system integrity over time.
Core Function: Landing valves provide localized, manual flow and pressure control from main building risers to fire hoses.
Critical Differentiator: Unlike standard outdoor hydrants, landing valves are specifically engineered for indoor, multi-story application (stairwells, fire hose cabinets) with distinct pressure-regulating capabilities.
Selection Criteria: Proper specification depends on riser type (wet/dry), required pressure outputs, material durability (e.g., gunmetal/brass), and regional compliance (BS 5041, UL/FM, EN standards).
Risk Management: Routine SOP-driven maintenance is non-negotiable to prevent valve seizing or catastrophic pressure failures during emergencies.
A building’s internal water reticulation system relies on robust integration. Wet risers constantly hold pressurized water ready for immediate deployment. Dry risers remain empty until an external fire engine pumps water into the network. The valve connects directly to this main vertical pipe. It utilizes a heavy-duty flanged or threaded inlet to ensure a watertight seal. The unit sits completely dormant during normal daily operations. It securely holds back immense static water pressure until manual actuation occurs during an emergency.
The internal anatomy relies on precision engineering to function seamlessly. A central threaded spindle connects to an external handwheel. Turning this handwheel requires minimal physical effort due to engineered mechanical advantage. This rotation forces the spindle upward. The movement lifts a durable rubber-faced washer away from a machined brass seat. Prior to opening, static pressure pushes the washer tightly against the seat. Lifting this seal allows pressurized water to rush through the outlet toward the connected hose.
Effective pressure management prevents catastrophic accidents. High-rise buildings generate enormous static pressure at lower floor levels. Gravity forces water downward through the riser column. Unregulated pressure creates highly dangerous conditions for firefighting personnel. A standard outlet would release water at uncontrollable velocities. High pressure causes hoses to whip violently or burst under stress. Operators face severe physical injury risks. Pressure Reducing Valves (PRVs) mitigate this exact threat. They incorporate internal spring-loaded mechanisms. These sophisticated components automatically step down high mainline pressures. They deliver a safe, manageable flow rate to the user. Firefighters can hold the hose securely and direct the water stream effectively.
Understanding environmental application helps resolve common evaluation hurdles. Industry professionals often confuse indoor components with outdoor municipal infrastructure. You mount indoor valves specifically within enclosed staircases, lobbies, or dedicated fire hose cabinets. These controlled environments protect the hardware from extreme weather but introduce severe spatial constraints. In contrast, standard hydrant valves sit outdoors along municipal streets. They face direct exposure to freezing temperatures, vehicle impacts, and environmental debris.
Vertical building zones demand unique engineering tolerances. Designing a water network for a 50-story high-rise differs vastly from horizontal street-level layouts. Street-level municipal networks operate at relatively consistent horizontal pressures. Vertical riser systems experience drastic pressure variations depending on the floor elevation. A ground-floor unit must handle significantly higher static pressure than a top-floor unit. Therefore, indoor multi-story valves require advanced pressure threshold management. They must maintain consistent flow rate designs across vastly different vertical elevations.
Interface coupling methods also differ significantly between these two systems. Every second counts during an active fire scenario. A specialized fire hose valve typically features an instantaneous female outlet. First responders simply push their hose coupling into the outlet to achieve an immediate, secure lock. This mechanism saves precious time. Outdoor hydrants typically utilize heavy threaded connections or Storz couplings. These require physical twisting and specialized spanner wrenches to secure the hose tightly.
The table below summarizes these critical distinctions:
Comparison Metric | Landing Valve | Standard Fire Hydrant Valve |
|---|---|---|
Application Environment | Indoors (Stairwells, lobbies, fire hose cabinets) | Outdoors (Municipal streets, industrial yards) |
Primary User | Facility occupants, localized first responders | Municipal fire departments, heavy fire engines |
Engineering Focus | Vertical pressure regulation, compact footprint | High flow capacity, freeze/impact resistance |
Outlet Interface | Instantaneous female (push-to-lock) | Threaded or Storz connections (requires wrenches) |
Modern building architecture dictates specific hydraulic layouts. You must present unbiased solution categories when selecting hardware. The chosen configuration must align perfectly with the surrounding structural space. It must also accommodate the physical movements of emergency personnel operating in high-stress environments.

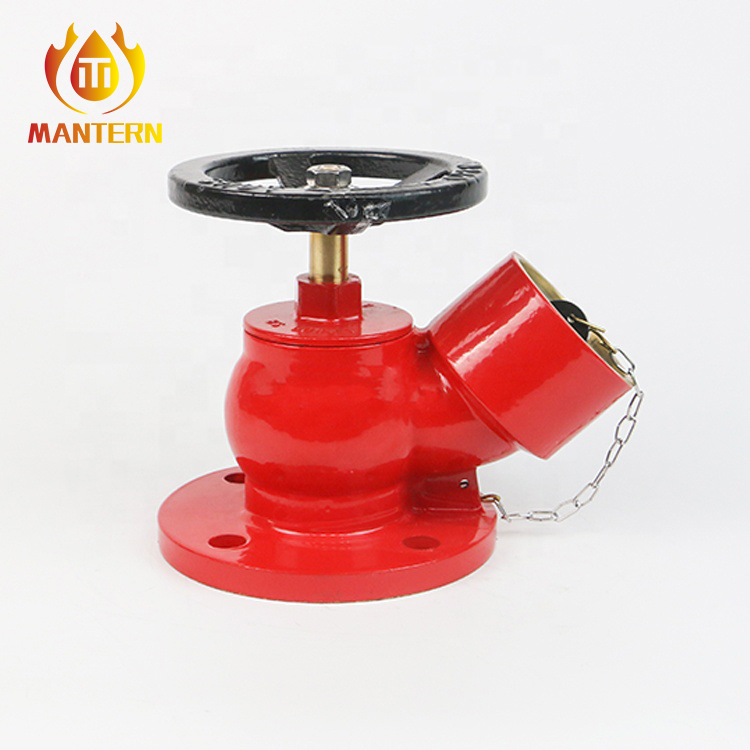

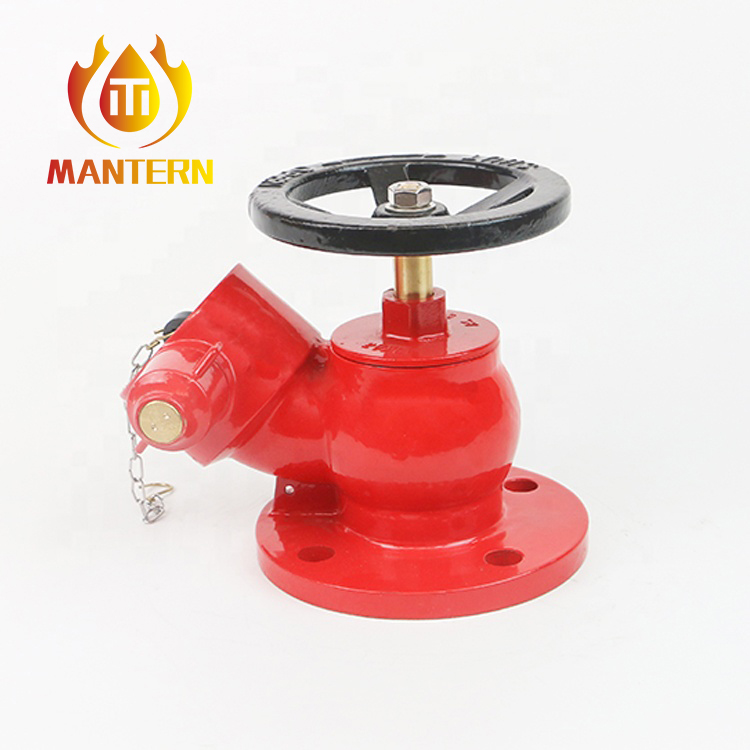

The oblique design serves as the dominant industry standard for enclosed fire hose cabinets. These models feature a distinct angled outlet. The outlet typically points downward at a 45-degree angle. This specific geometry serves a vital fluid dynamics purpose. When you connect a heavy canvas hose, the fabric naturally drops toward the floor. A horizontal outlet would force the hose to bend sharply. This bending creates severe kinks. Kinks restrict water flow completely during critical moments. The 45-degree angle allows the hose to drape naturally. It prevents restriction and ensures maximum immediate flow capacity.
Architectural constraints often require alternative geometric configurations. Engineers specify right-angle designs when vertical space proves excessively limited. The inlet enters from the bottom, and the outlet faces exactly 90 degrees forward. This setup hugs the riser pipe closely. It minimizes the depth required inside the wall cavity. Conversely, straight-through configurations serve different purposes. You use straight models when the riser pipe runs horizontally along a ceiling or low wall. The water flows directly through the unit without changing directional planes. This reduces internal turbulence. It maximizes flow efficiency in tight horizontal corridors.
High-rise developments present significant hydraulic hazards. The business case for PRV configurations centers entirely on life safety. Static pressure builds exponentially as water descends a vertical riser column. Lower floors easily exceed safe operating limits. Standard static pressure often exceeds 7 to 8 bar in these lower zones. Handheld hoses become impossible to manage at these levels. PRVs solve this dangerous hydraulic imbalance. They automatically reduce outgoing pressure regardless of incoming fluctuations. They ensure first responders receive a steady, safe flow rate. This prevents catastrophic hose ruptures and subsequent operator injuries.
Evaluating fire safety equipment requires verifiable engineering data. You cannot compromise on material quality or recognized safety certifications. Establishing a rigorous procurement framework ensures long-term operational readiness. It also protects building owners from severe legal liabilities.
Material integrity determines the hardware's operational lifespan. Fire protection networks sit dormant for years but must function flawlessly instantly. Marine-grade gunmetal offers exceptional superiority. Bronze provides another highly resilient option. These premium alloys resist galvanic corrosion aggressively. They perform exceptionally well in harsh coastal environments or highly humid industrial zones. Standard brass offers acceptable performance in mild climates but may degrade over decades. Cast iron represents a poor choice for internal water components. It rusts rapidly when exposed to trapped moisture. Rust flakes destroy internal rubber seals and cause catastrophic leaks.
Compliance and certifications establish absolute trust. Non-certified devices represent a severe safety liability. You must demand verifiable testing documentation. The industry relies on several gold-standard lenses for evaluation. The British Standard BS 5041-1 governs material composition and pressure thresholds strictly. LPCB (Loss Prevention Certification Board) approval indicates rigorous third-party auditing. BSI Kitemark certification validates ongoing manufacturing quality control. Local fire safety codes often mandate these specific benchmarks. Installing uncertified units often voids facility insurance policies entirely.
You must rigorously verify inlet and outlet compatibility. Use the following checklist to match components accurately:
Inlet Specifications: Determine if the existing riser main requires flanged or screwed connections. Measure the precise pipe diameter.
Flange Standards: Match the bolt hole patterns to regional standards (e.g., PN16, ANSI, BS10).
Outlet Specifications: Verify the local fire department's instantaneous hose coupling standards. Incompatible connections render the system useless.
Cap Requirements: Ensure the unit includes a chained blanking cap to prevent debris accumulation.
Grounding your strategy in real-world implementation experience demonstrates true authority. Proper physical installation and rigorous lifecycle management prevent system degradation. Mechanical devices fail when neglected.
Integration demands adherence to standard operating procedures (SOP). Ergonomic height placement remains critical. You should install the unit approximately 750mm to 1200mm above the finished floor level. This height allows firefighters to apply downward body weight when turning the handwheel. You must also guarantee adequate clearance within fire hose cabinets. The operator requires sufficient knuckle room to rotate the handwheel fully. When mating flanged inlets, apply appropriate torque specifications. Over-tightening bolts crushes the flange gasket. Under-tightening causes gradual weeping leaks behind the drywall.
System degradation represents a constant operational reality. You must proactively address common failure modes. Internal rubber washers dry out and crack over years of inactivity. Spindles seize completely due to lack of lubrication or galvanic corrosion. Construction debris often lodges tightly against the brass valve seat. This debris prevents the washer from forming a watertight seal. These failures result in flooded stairwells or useless equipment during fires.
Fire codes mandate a strict, standardized maintenance schedule. You must execute these steps sequentially:
Visual Inspections (Every 6 Months): Check for external corrosion, missing blanking caps, and weeping leaks around the packing gland.
Physical Actuation (Every 6 Months): Slightly open and close the handwheel to ensure the spindle moves freely. Lubricate the threads immediately.
Hydrostatic Testing (Annually): Pressurize the unit to its maximum rated capacity to verify seal integrity under stress.
Flow Rate Verification (Annually): Measure the actual water output using a calibrated flow meter. Ensure the PRV mechanism steps down pressure correctly.
A landing valve represents a precision life-safety device. It requires exact alignment with a building's complex hydraulic calculations. These devices act as the definitive manual release point connecting highly pressurized risers to frontline emergency responders. Their mechanical integrity dictates the success of localized fire suppression efforts.
Buyers must apply sound shortlisting logic during procurement. You must prioritize certified premium materials over initial unit cost. Specifying marine-grade gunmetal and demanding BS 5041-1 certification prevents catastrophic compliance failures. Compromising on these criteria introduces unacceptable operational risks. Ensure your selected pressure ratings match the vertical elevation demands perfectly.
Take decisive action to secure your facility. We encourage you to consult directly with a certified fire protection engineer. Request detailed manufacturer technical data sheets before finalizing any specifications. Cross-reference these documents to verify absolute compatibility with your specific riser network and local municipal requirements.
A: Standard models typically handle up to 15 bar of static pressure from the riser main. However, this high pressure is extremely dangerous for hose handling. Pressure Reducing Valve (PRV) models automatically step down this high mainline pressure. They deliver a safe, manageable operating pressure usually between 4.5 to 5.5 bar for the user.
A: Yes, they are compatible with both systems. Wet risers keep the valve under constant water pressure. Dry risers remain empty until pressurized by a fire engine. Devices used in dry systems may feature minor mechanical differences, such as specific drainage requirements, to prevent trapped water from freezing or causing internal corrosion.
A: General industry standards dictate a strict schedule. You must conduct visual inspections and physical spindle checks every 6 months. You must perform comprehensive hydrostatic pressure tests and flow-rate verifications annually. Always defer to your local Authority Having Jurisdiction (AHJ) regulations, as they may enforce more stringent testing intervals.
A: You typically locate them in easily accessible, fireproof zones. Common placements include dedicated fireproof stairwells, main building lobbies, and specialized fire hose cabinets. These locations protect the equipment from immediate fire damage while providing first responders with secure, centralized staging areas to connect their hoses safely.
