MTPG17
Mantern

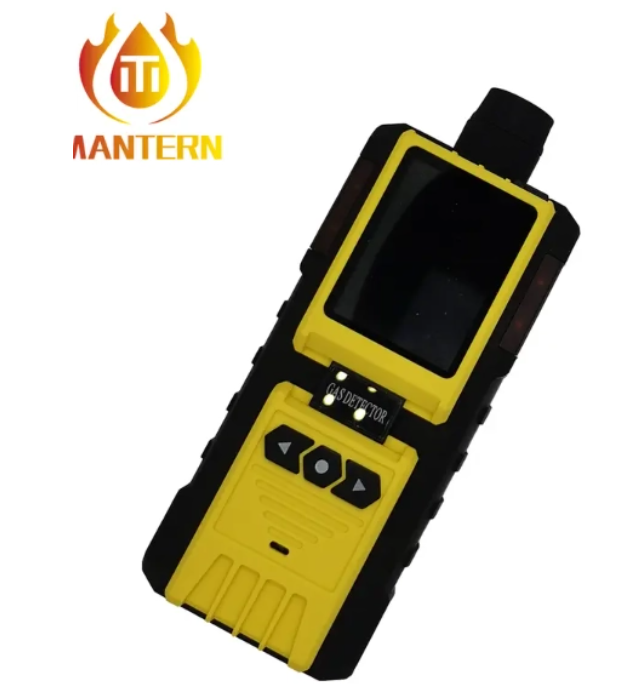

The MTPG17 multi-gas detector features a compact design that allows for easy portability and use in confined spaces. It incorporates a 32-bit built-in microcontroller unit (MCU) that provides stable performance and adaptive capabilities across different operating conditions. The device supports both natural diffusion sampling and optional built-in suction pump sampling methods, enabling users to select the appropriate approach based on their specific monitoring needs.
This detector is engineered for use in harsh industrial environments, with a rugged construction that combines high-strength engineering plastics and composite anti-slip rubber. It has achieved an IP65 protection rating, ensuring resistance to water and dust ingress, and meets explosion-proof requirements for use in hazardous locations.
The MTPG17 utilizes high-sensitivity sensors that deliver consistent readings with high repeatability. The natural diffusion sampling method allows for passive monitoring of ambient air, while the optional built-in suction pump enables active sampling of hard-to-reach areas or confined spaces. The sensors provide accurate measurements with an overall accuracy of ≤5%FS.
The device is equipped with a large liquid crystal display (LCD) that provides intuitive, clear, and comprehensive indication of gas concentrations, alarm status, and battery level. The interface is designed for straightforward operation, allowing users to navigate through functions and access data quickly even while wearing protective gloves.
The MTPG17 features a triple alarm system consisting of sound, light, and vibration alerts. These alarms activate when gas concentrations exceed pre-set threshold levels, ensuring that workers are notified of potential hazards even in noisy or low-visibility environments.
The detector is powered by a rechargeable battery that provides more than 10 hours of continuous operation on a single charge. The charging time ranges from 6-8 hours, allowing for convenient overnight charging before daily use.
Parameter | Value |
Accuracy | ≤5%FS |
Operating Temperature | -20 ~ 50 °C |
Operating Humidity | <95% relative humidity |
Charging Time | 6-8 hours |
Continuous Working Time | >10 hours |
Protection Grade | IP65 |
Alarm Method | Sound, light, vibration |
Target Gas | Range | Low Alarm | High Alarm | Resolution |
LEL | 0-100%LEL | 20%LEL | 50%LEL | 1%LEL |
H₂S | 0-100ppm | 10ppm | 35ppm | 1ppm |
CO | 0-999ppm | 50ppm | 150ppm | 1ppm |
O₂ | 0-30%vol | 19.5%vol | 23.5%vol | 0.1%vol |
Note: Detection capabilities for other gases are available upon request. Please contact the supplier for customization options.
Oxygen (O₂): <30 seconds
Carbon Monoxide (CO): <40 seconds
Combustible Gases (LEL): <20 seconds
Hydrogen Sulfide (H₂S): <40 seconds
The MTPG17 multi-gas detector is suitable for a wide range of industrial applications where gas monitoring is essential for safety and compliance. In mining operations, it is used to detect methane and other combustible gases that pose explosion risks, as well as oxygen deficiency in underground tunnels.
In petrochemical facilities and refineries, the detector monitors for leaks of flammable hydrocarbons and toxic gases such as hydrogen sulfide and carbon monoxide. It is also used in wastewater treatment plants to detect toxic gases produced during the treatment process, and in construction sites for confined space entry procedures.
Additional applications include power plants, chemical manufacturing facilities, and transportation hubs where fuel storage and handling take place. The device helps commercial procurement teams meet regulatory requirements for workplace safety and reduce the risk of accidents and equipment damage.
Yes, the MTPG17 can be customized to detect additional gases beyond the standard LEL, O₂, CO, and H₂S. Please contact the supplier to discuss your specific gas detection requirements and available customization options.
The MTPG17 provides more than 10 hours of continuous operation on a fully charged battery. The actual battery life may vary depending on operating conditions, including temperature and alarm activation frequency.
Yes, the MTPG17 is designed with explosion-proof construction and meets the necessary safety standards for use in hazardous locations where explosive gas mixtures may be present.
The MTPG17 has an IP65 protection rating, which means it is protected against dust ingress and low-pressure water jets from any direction, making it suitable for use in outdoor and industrial environments.
For commercial procurement inquiries about the Mantern MTPG17 handheld multi-gas detector, including pricing, lead times, and customization options, please contact our sales team. We provide technical support and after-sales service to ensure optimal performance of your gas detection equipment throughout its lifecycle.
