MTFS01
Mantern

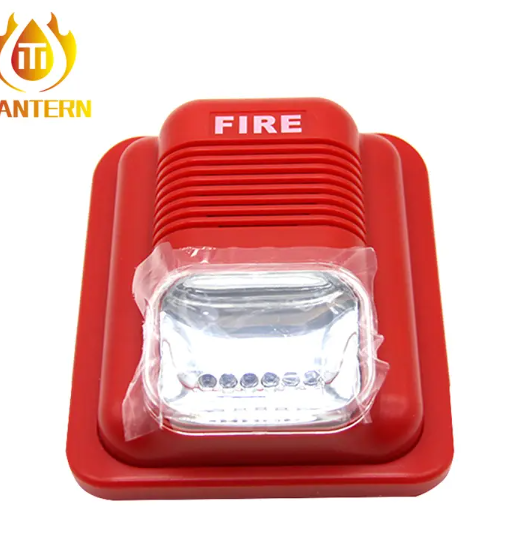

The Mantern MTFS01 conventional fire alarm sounder strobe is a terminal alarm device designed for integration with conventional fire alarm systems. This combined unit provides both audible and visual warning signals when fire conditions are detected. It serves as a critical component in fire safety systems, alerting building occupants to potential hazards through dual sensory input. The device is engineered for use in various commercial and industrial settings where reliable fire notification is required.
The MTFS01 fire alarm horn strobe offers multiple light source options, including xenon tube light and LED light configurations. It incorporates high-capacity flash lamps sourced from Germany, which produce visible warning effects even at lower input power levels. The unit features three distinct alarm sound patterns: ambulance sound, pumper sound, and police car sound, allowing for customization based on specific facility requirements. The design prioritizes clear and effective notification across different environmental conditions.
Parameter | Value |
Size | 134L × 115W × 48H mm |
Rated Voltage | 12V/24V DC |
Rated Current | 80mA-100mA |
Flash Intensity | ≥1.2WS |
Flash Period | ≤1.5S |
Audio Alarm | ≥95 dB |
Temperature Range | -10ºC-+55ºC |
Relative Humidity | ≤95% |
Flash Lamp Frequent Flashing Lifespan | ≥40000 times |
The MTFS01 fire sounder strobe is suitable for a wide range of industrial applications and commercial facilities. It is commonly installed in office buildings, retail spaces, warehouses, manufacturing plants, educational institutions, and healthcare facilities. The device supports commercial procurement for new construction projects, renovation work, and fire safety system upgrades. Its dual notification capability ensures compliance with local fire safety regulations and provides effective warning for both hearing and visually impaired occupants.
The MTFS01 conventional fire alarm sounder strobe is designed for surface mounting, which simplifies installation processes. It operates on 12V or 24V DC power supplies, making it compatible with most standard conventional fire alarm control panels. The device connects to the fire alarm system's notification circuit and activates automatically when the system receives a fire signal. Its compact dimensions (134L × 115W × 48H mm) allow for installation in areas with limited space while maintaining optimal visibility and audibility.
The Mantern MTFS01 offers two light source options: xenon tube light and LED light. Both configurations provide the specified flash intensity of ≥1.2WS and flash period of ≤1.5S.
The unit includes three pre-programmed alarm sound patterns: ambulance sound, pumper sound, and police car sound. These options allow facilities to select the most appropriate notification tone for their specific environment.
The MTFS01 operates on both 12V DC and 24V DC power supplies, with a rated current range of 80mA-100mA. This dual voltage compatibility makes it suitable for integration with most conventional fire alarm systems.
The flash lamp in the MTFS01 has a rated lifespan of ≥40000 frequent flashing cycles under normal operating conditions. This durability supports long-term use in commercial and industrial facilities.
