MTAB01
Mantern

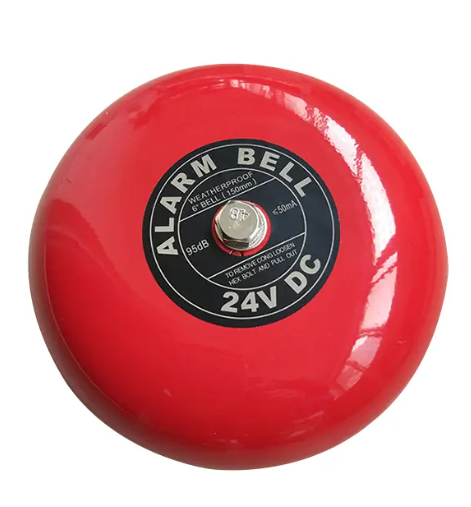

The Mantern MTAB01 conventional fire alarm bell is an audible signaling device designed to produce a distinct sound for building occupants during fire emergencies. As a widely recognized notification appliance, this electric bell delivers clear evacuation signals that prompt immediate action. This product integrates into existing fire alarm systems, making it suitable for commercial procurement projects across various industries.
The MTAB01 model features a weatherproof design that supports installation in both indoor and outdoor environments. Its steel construction provides durability in demanding conditions, while the red color ensures high visibility for safety purposes. This fire alarm bell operates with a 2-wire configuration, simplifying integration into conventional fire alarm systems.
2-wire conventional fire alarm electric bell design
Multiple voltage options available for different system requirements
Red exterior for enhanced visibility in emergency situations
Compatible with all conventional fire alarm control panels
Constructed from steel material
Multiple diameter options to suit various space requirements
Weatherproof enclosure for indoor and outdoor installation
Parameter | Specification |
Model No. | MTAB01 |
Operation Voltage | DC 12V/24V, AC240V/110V Optional |
Alarm Current | Max. 30mA @ 12V DC |
Sound Level | Max. 110dB |
Working Relative Humidity | ≤93%RH |
Working Temperature | -10℃ to +60℃ |
Input Terminal Wire Gauge | 12 to 18 AWG |
Size | Diameter 150mm, Height 61mm |
Additional options include diameters of 4", 6", 8" and 10" to accommodate different installation spaces and sound coverage requirements. The 150mm (6") model is the standard configuration shown in the specifications above.
This conventional fire alarm bell serves various industrial applications and commercial operations. It is suitable for installation in office buildings, manufacturing facilities, warehouses, retail spaces, educational institutions, and healthcare facilities. The weatherproof design also allows for use in covered outdoor areas such as loading docks, parking garages, and building entrances.
The operating temperature range of -10℃ to +60℃ and humidity tolerance up to 93%RH ensure reliable performance in diverse environmental conditions. This makes the MTAB01 model appropriate for facilities with varying climate control requirements.
The Mantern MTAB01 fire alarm bell is compatible with all conventional fire alarm control panels available on the market. This compatibility simplifies system upgrades and new installations for commercial users. The 2-wire connection reduces installation time and material costs compared to more complex notification devices.
For installation, use 12 to 18 AWG wire for input terminals. To remove the bell for maintenance or replacement, loosen the hex bolt and pull out the assembly. This straightforward design minimizes downtime during servicing, which is critical for maintaining continuous fire safety protection in commercial buildings.
The MTAB01 model supports DC 12V, DC 24V, AC 110V, and AC 240V operation. Select the voltage that matches your existing fire alarm system requirements.
Diameter options include 4", 6", 8", and 10". The standard 6" (150mm) model provides a sound level up to 110dB, suitable for most commercial applications.
Yes, the weatherproof enclosure allows for installation in covered outdoor areas. The product operates reliably within temperatures from -10℃ to +60℃ and humidity up to 93%RH.
The MTAB01 model is designed to work with all conventional fire alarm control panels. Consult your system documentation for specific wiring instructions.
Use 12 to 18 AWG wire for connecting the fire alarm bell to your control panel. Follow local electrical codes and fire safety regulations during installation.
The Mantern MTAB01 conventional fire alarm bell provides essential audible notification for fire safety systems in commercial and industrial buildings. Its proven design, multiple configuration options, and broad compatibility make it a practical choice for commercial procurement projects. For custom requirements or bulk ordering information, contact our team to discuss your specific needs.
