MTSD12
Mantern
The MTSD12 Battery Operated Photoelectronic Smoke Alarm is engineered to deliver uncompromising safety and rapid response in critical moments. Designed with a sleek, compact white housing that blends unobtrusively into any architectural ceiling, this device integrates advanced photoelectronic sensing capabilities to precisely identify smoldering fires—often the most dangerous and slow-developing threats. By focusing on intelligent detection and user-centric design, it provides a reliable foundation for comprehensive fire safety management in both residential and commercial environments.
Features:
1. Easy operation
Simplicity is at the core of the MTSD12's design philosophy. The intuitive interface ensures that facility managers and end-users alike can effortlessly manage the device without requiring specialized training. From initial activation to routine maintenance checks, every interaction is streamlined to minimize downtime and ensure continuous protection.

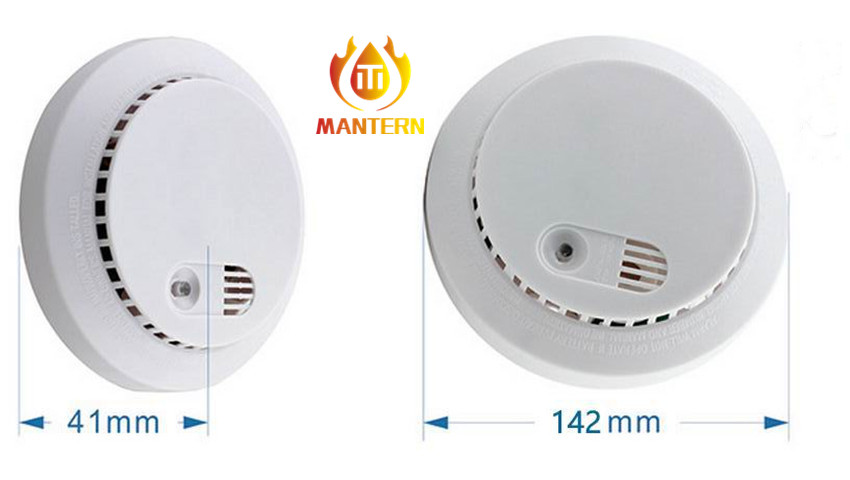

2. Compact size
3. SMT Design, High stability
4. 9V DC battery operated
5. MCU automatic processing technology
6. Manual test
7. Auto reset
8. AUtomatic detecting
9. Sound-light alarm
10. Strong adaptability for circumstance

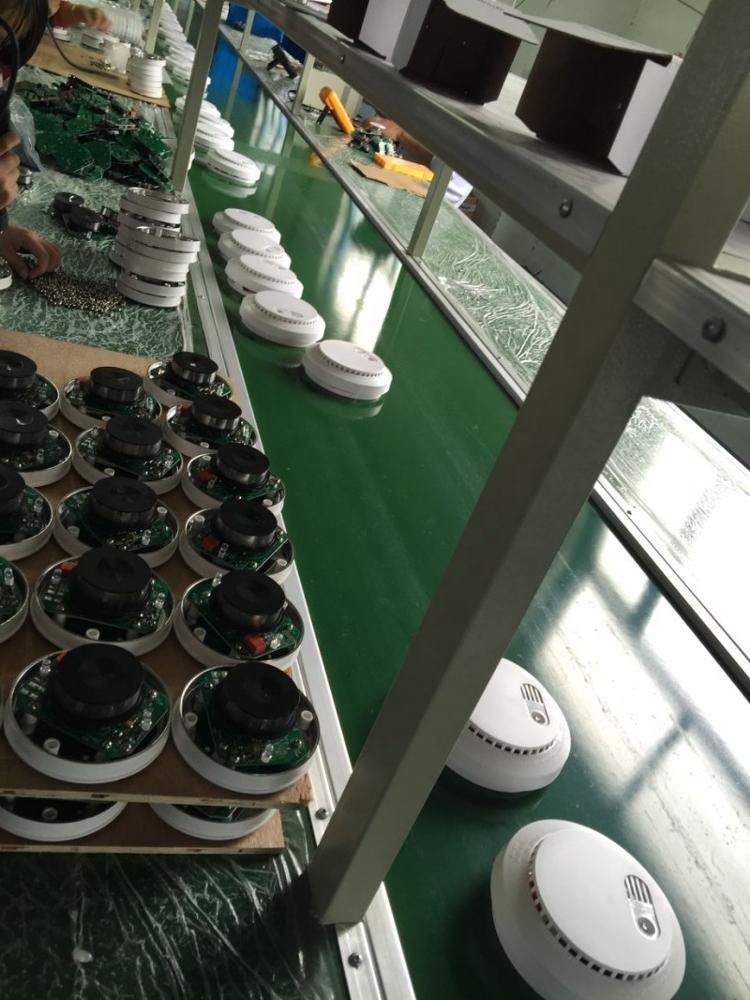

The unobtrusive, low-profile footprint allows for versatile placement across various ceiling types without disrupting interior aesthetics. Internally, the unit is constructed using Surface Mount Technology (SMT), a precision manufacturing process that secures electronic components firmly to the circuit board. This meticulous SMT design guarantees exceptional stability and resistance to mechanical vibrations, ensuring the alarm functions flawlessly even in demanding environments.
Powered by a reliable 9V DC battery, this alarm operates independently of the main electrical grid, providing uninterrupted surveillance during power outages. The core of its intelligence lies in the MCU (Microcontroller Unit) automatic processing technology. This sophisticated processor continuously analyzes air particulate data, distinguishing between harmless elements like cooking steam and actual combustion particles, thereby drastically reducing false alarms.
For routine compliance checks, the prominent manual test button allows users to instantly verify the operational status of the sensor and battery. Following any alert or test sequence, the auto reset function seamlessly returns the device to its standard monitoring state without requiring manual recalibration. The continuous automatic detecting capability ensures that the environment is monitored 24/7. When a threat is verified, the device triggers an unmistakable sound-light alarm—combining a piercing auditory warning with a sharp visual indicator to alert occupants immediately, regardless of ambient noise levels.
11. Dust proof, insect proof, anti-visible light
To maintain peak sensitivity over years of operation, the sensing chamber is meticulously engineered with a robust "three-proof" structural design. It is completely dust-proof, preventing the accumulation of airborne particles that could otherwise blind the optical sensor. The insect-proof mesh barrier effectively blocks small pests from entering the chamber and triggering false alerts. Furthermore, the anti-visible light architecture shields the internal photodiode from stray ambient lighting or sudden flashes, ensuring that the sensor only reacts to genuine smoke density. This strong adaptability for circumstance makes it an ideal choice for diverse settings, from pristine office corridors to slightly more challenging storage areas.
Ensuring strict compliance with international fire safety standards, including CE and RoHS directives, the MTSD12 model is built for secure global deployment. The specifications below detail the precise operational parameters that guarantee reliable performance, providing procurement managers and safety engineers with the exact data needed for project planning.
Technical Data:
Photoelectronic Smoke Alarm
Model: MTSD12
Operation voltage: DC9V or AC110-220V
This versatile voltage compatibility ensures that the device can operate entirely independently on its dedicated battery power, or be integrated into broader electrical systems where AC power is preferred, offering maximum flexibility for different architectural requirements.
Alarm current: ≤10mA; ≤40mA (wireless type)
The ultra-low alarm current reflects the device's exceptional energy efficiency. By drawing minimal power even during a full alert state, it preserves battery life and ensures the alarm sounds for the maximum possible duration during an emergency.
Sound level: 85dB
Indicate alarm: Red LED flash
When activated, the internal piezoelectric horn emits a highly penetrating 85dB acoustic warning, engineered to wake sleeping occupants and cut through background noise in busy environments. Simultaneously, the rapid red LED flash provides a critical visual cue, which is especially vital for individuals with hearing impairments or in areas requiring visual verification of the alarm source.
Working temperature: -10ºC - 50ºC
Working Humidity: <95%RH
Designed to withstand significant environmental fluctuations, the alarm functions perfectly in slightly freezing conditions up to intense ambient heat. The high humidity tolerance (up to 95% relative humidity without condensation) ensures the internal circuitry remains protected against moisture-induced short circuits.
Installation: Ceiling-mounted
The wire-free, twist-and-lock mounting bracket allows for rapid ceiling installation. This cable-free approach drastically reduces deployment time and labor costs, making it highly efficient for upgrading safety systems across large residential complexes or commercial office floors.
Detecting area: 40 square meters when installation height between 6-12 meters. 20 square meters when installation height within 6 meters
These precise coverage metrics allow safety planners to calculate the exact number of units required for comprehensive spatial protection. Whether deployed in standard residential bedrooms (typically under 6 meters in height) or expansive commercial lobbies (6-12 meters), the sensor's calibration ensures optimal smoke capture and timely alerts.

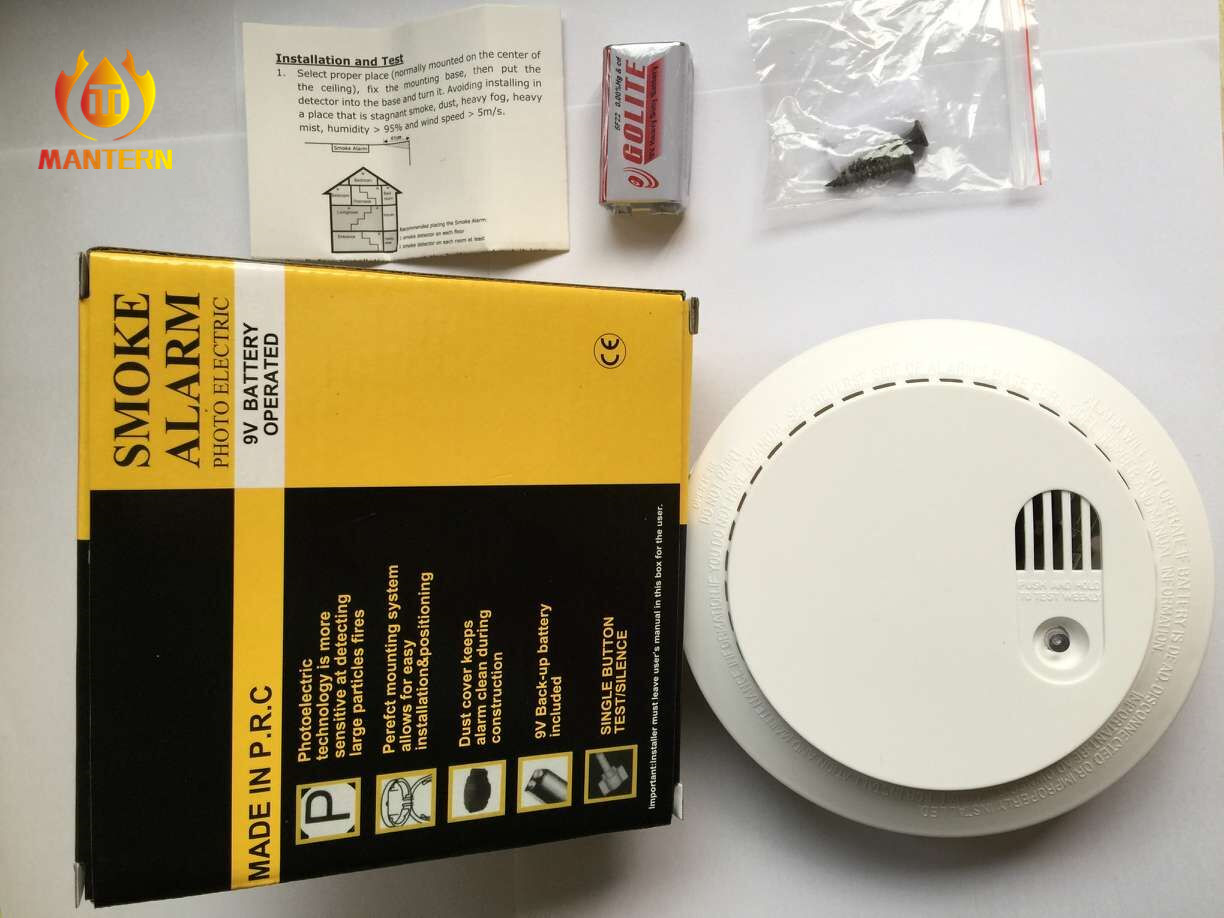

Recognizing that different organizations have unique branding and technical requirements, we offer extensive OEM and ODM customization capabilities for the MTSD12 model. The smooth, durable exterior of the smoke alarm provides an ideal surface for custom brand logo printing, ensuring a cohesive corporate identity across multi-unit installations. Beyond aesthetics, we accommodate specialized packaging designs optimized for efficient distribution and inventory management.
For advanced project requirements, the internal architecture supports the flexible integration of wireless transmission modules. This allows the standalone units to be upgraded into interconnected networks, where a single triggered alarm can activate all connected devices throughout a facility, dramatically enhancing evacuation response times in sprawling commercial or residential estates.
Our commitment to safety extends far beyond the manufacturing floor. We back the MTSD12 with clear, robust warranty commitments and professional, round-the-clock technical support. To assist facility maintenance teams, we provide comprehensive troubleshooting guides that address field concerns swiftly.
Low Battery Management: The device features an automatic low-battery warning beep, eliminating guesswork and ensuring timely replacements before protection is compromised.
False Alarm Mitigation: Detailed guidance on optimal placement strategies to avoid areas with high steam or dust concentration, maximizing the efficiency of the MCU processor.
Acoustic Diagnostics: Clear instructions on how to interpret different chirping patterns (e.g., end-of-life warnings vs. immediate threats), streamlining routine maintenance.
By combining advanced photoelectronic detection, rigorous quality control, and responsive technical backing, the MTSD12 stands as a premium, low-maintenance solution designed to safeguard lives and property with absolute reliability.
