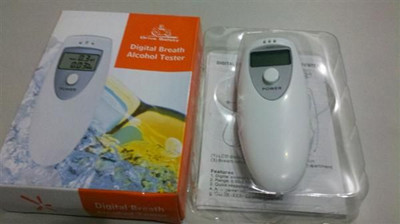

MTAT05 Breath gas alcohol tester is designed to test the alcohol content of human breath gas equipment. The machine type sensor adopts advanced nanometer semiconductor hotline alcohol sensor, has the extremely good sensitivity and good repeatability; Test program from the design of microcomputer control, artificial intelligence work process is reasonable, concise and convenient, the function is all ready, have a variety of adaptive ability; Backlit LCD digital, word figure display, intuitive and clear; Small and portable design easier to use your mobile. Measured breath gas when the alcohol content exceeds preset value, the opportunity to automatically send alarm, a reminder for your safe.
Features:
1. Quick response
2. MCU control
3. Cartoon and LCD indication ,backup light
4. No touch Healthy design
5. Fast respond & accurate display
6. Quick response and resume
7. Auto power-off
8. Low voltage indicator
Technical Data:
Model |
MTAT05 |
Sensor |
Hot-wire Alcohol |
range of measurement |
0.00-1.00mg/L(0.00-0.20%BAC;0.00-2.00‰BAC; 0.00-2.00g/L) |
Alarming Level |
0.25mg/L(0.05%BAC;0.50‰BAC;0.50g/L) |
Accuracy |
±0.01%BAC (0.2g/1) |
Target |
driver with drinking |
|
2X1.5V AAA alkaline battery |
Working Environment |
-10 °C -50°C |
|
≤95% No Dews |
Warm-up time |
<18sec |
Response time |
<8sec |
Display |
3 digital LCD with cartoon indication |
Dimension |
95x36x18mm |
Weight |
≤45g (excluding batteries) |
